Combination compression / push-fit connectors
20mm Compression Fitting with connections for LeakyPipe LP12 range.
(One or Two output options available for attaching one or two LeakyPipes)
Connect 20mm blue 'mains' MDPE pipe, to One output to LeakyPipe. Also works with 20mm LDPE Black polytube instead of Blue MDPE tube.
Use these compression fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. The output end is a barbed fitting which simply pushes onto the LeakyPipe.
Available for one or two LeakyPipe outputs - select from the "Outputs" option box above.
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal. High Quality Unidelta brand
Larger outputs are also available.
16 - fits 16mm polytube as single or double output. CLICK HERE
20 - fits 20mm polytube as single or double output. CLICK HERE

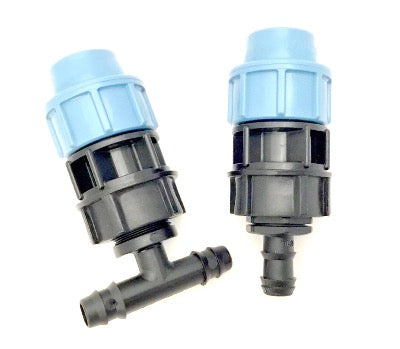

20mm Compression Fitting - 16mm barbed connector (1 and 2 output options)
Connect 20mm blue 'mains' pipe to 1 or 2 outputs of 16mm supply polypipe or garden hose.
Use these compression fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. (They will also work just as well with 20mm LDPE Black polytube Supply Pipe). The output end is a barbed fitting which simply pushes onto 16mm supply polypipe or 1/2"garden hosepipe.
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.
Choose 1 straight or 2 'tee' outputs from the drop-down menu above.
The following outputs are also available:
12 - fits LeakyPipe as single or double output. CLICK HERE
20 - fits 20mm polytube as single or double output. CLICK HERE
All connectors also available as an elbowed compression fitting. CLICK HERE
To connect 16mm LDPE supply polytube, direct to 20mm "BLUE" MDPE polytubes. A very positive connection.
20mm Compression to 20mm barbed connector (1 or 2 output options)
Connect 20mm blue 'mains' pipe to 1 or 2 outputs of 20mm "supply" LDPE black polypipe.
Use these fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. The output end is a barbed fitting which simply pushes onto 20mm supply polypipe.
The following outputs are available:
12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.
To connect 20mm supply LDPE polypipe direct to 20mm "BLUE" MDPE polytubes. A very positive connection.

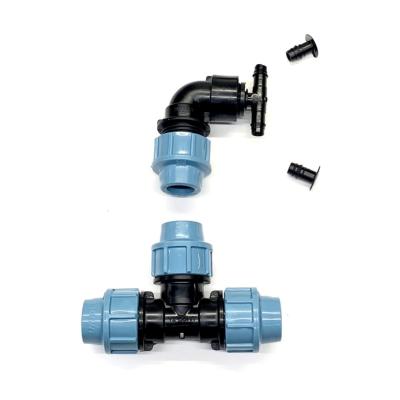

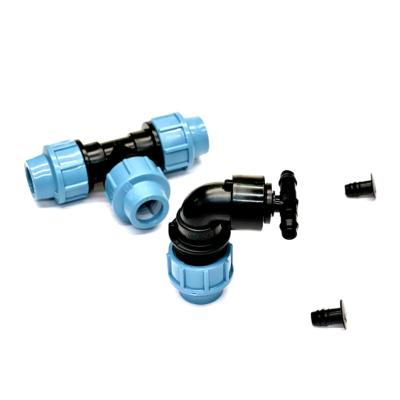

Pack of compression fittings to create 'risers' to bring water up inside raised beds, planters, troughs or containers. Designed for use at the construction stage of building raised beds to create a neat look without pipes showing. Suitable for professional use in shared space communal areas or home domestic modern gardens. Compression fittings create reliable secure leak-free connections in areas that are difficult to access at a later date for maintenance. Compression fittings are compatible with blue 'mains' MDPE pipe or black LDPE pipe.
During construction, a 'riser' is created within the raised bed. At the soil surface, the compression elbow fitting will bring the pipe work level with the soil surface and allow connection to 2 lengths of LeakyPipe with simple push-fit barbed fittings. The LeakyPipe is laid amongst your plants on the surface of the soil or under a shallow layer of mulch/soil. The LeakyPipe ends are sealed with the included plugs. Overall this gives a neat look as the riser pipe and LeakyPipes will get covered by soil and not be visible.
Compression fittings are ideal for use in situations that would be difficult to access for maintenance at a later date. These are great quality compression fittings and are the ones we choose to use ourselves, owing to their reliability.
Options include size 20mm or 25mm supply pipe. Choose which size you would like and all connectors will automatically be swopped to your chosen size.
- One 20 or 25 compression Tee. (allows branching to the supply pipe to create a 'riser')
- One 20 or 25 compression elbow to 12 barbed connector (allows connection to 2 lengths of LeakyPipe)
- Two 12 end plugs (for sealing the LeakyPipe ends).

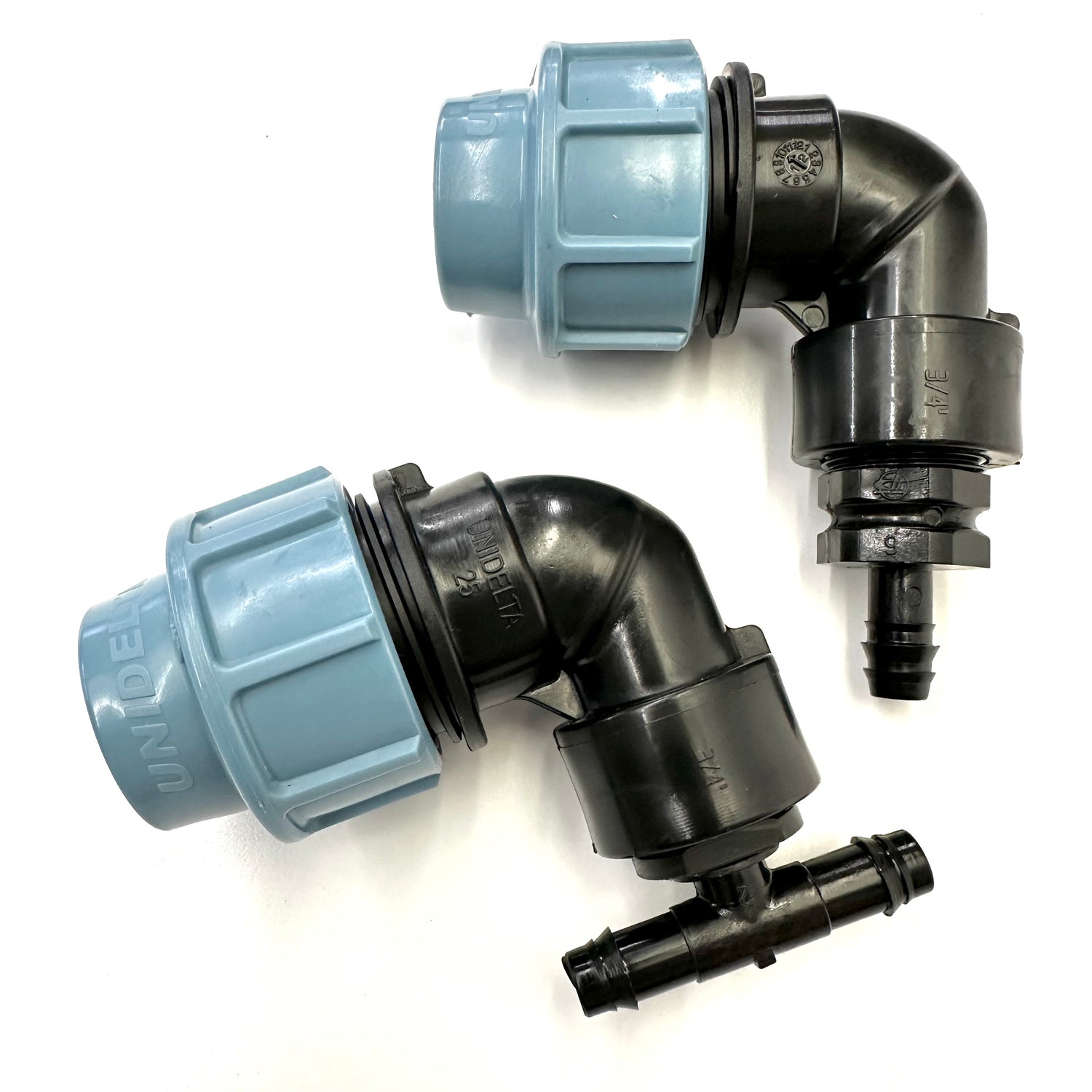

20mm Compression Elbow to LeakyPipe connector.
(1 or 2 output options)
Connect 20mm blue 'mains' pipe to One or Two outputs of LeakyPipe.
Use these fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. The compression fitting is elbowed so that outputs are at 90degrees, very useful when the blue pipe is vertical as a 'riser' pipe. The output end is a barbed fitting which simply pushes onto the LeakyPipe.
The following outputs are available:
12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.
20mm Compression Elbow to 16mm barbed connector.
(1 or 2 output options)
Connect 20mm blue 'mains' pipe to 1 or 2 outputs of 16mm supply pipe or garden hosepipe.
Use these fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. The compression fitting is elbowed so that outputs are at 90degrees, very useful when the blue pipe is vertical as a 'riser' pipe. The output end is a barbed fitting which simply pushes onto the 16mm supply polypipe or 1/2" garden hosepipe..
The following outputs are available:
12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.
20mm Compression Elbow to 20mm barbed connectors.
(1 or 2 output options)
Connect 20mm blue 'mains' pipe to 1 or 2 outputs of 20mm supply pipe.
Use these fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. The compression fitting is elbowed so that outputs are at 90degrees, very useful when the blue pipe is vertical as a 'riser' pipe. The output end is a barbed fitting which simply pushes onto 20mm supply polypipe.
The following outputs are available:
12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.
20mm Compression to 3/4" female Threaded Adaptor.
Sold Individually
Try our Reliable 3/4 Female AdaptorThere is no more secure way of quickly attaching 20mm supply pipe to a male thread (like the one you'll find on the output of a watering timer or tap) than with this fitting.
No fancy tools needed to fit this adaptor! SOLD INDIVIDUALLY
20mm Compression to LeakyPipe® connector
(To one or two lengths of Leaky Pipe options)
Connect one or two LeakyPipe lines into a length of 20mm blue MDPE 'mains' pipe
Use these fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. The output end is a barbed fitting which simply pushes onto the LeakyPipe. See our video help on using compression fittings.
The following outputs are available.
12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal
20mm Compression Tee Fitting with 16mm barbed connection to LDPE black polytube. (1, 2 output options)
Tee into a line of 20mm blue 'mains' MDPE pipe to one or two 16mm black polytube "supply” pipes. Just select which you need.
Use these compression fittings where the water is supplied to the garden in 20mm blue MDPE 'mains' pipe. The output end is a barbed fitting which simply pushes onto the 16mm black LDPE polytube, that will carry the water further into your system..
Available with one or two outputs - select from the menu above.
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.
The following outputs are also available.
12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output
High Quality Unidelta brand
25mm Compression to LeakyPipe connector
(One or Two output options)
Connect 25mm blue 'mains' pipe to 1 or 2 lengths of LeakyPipe.
Use these fittings where the water is supplied to the garden in 25mm blue MDPE 'mains' pipe. The output end is a barbed fitting which simply pushes onto the LeakyPipe.
The following outputs are available.
12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal

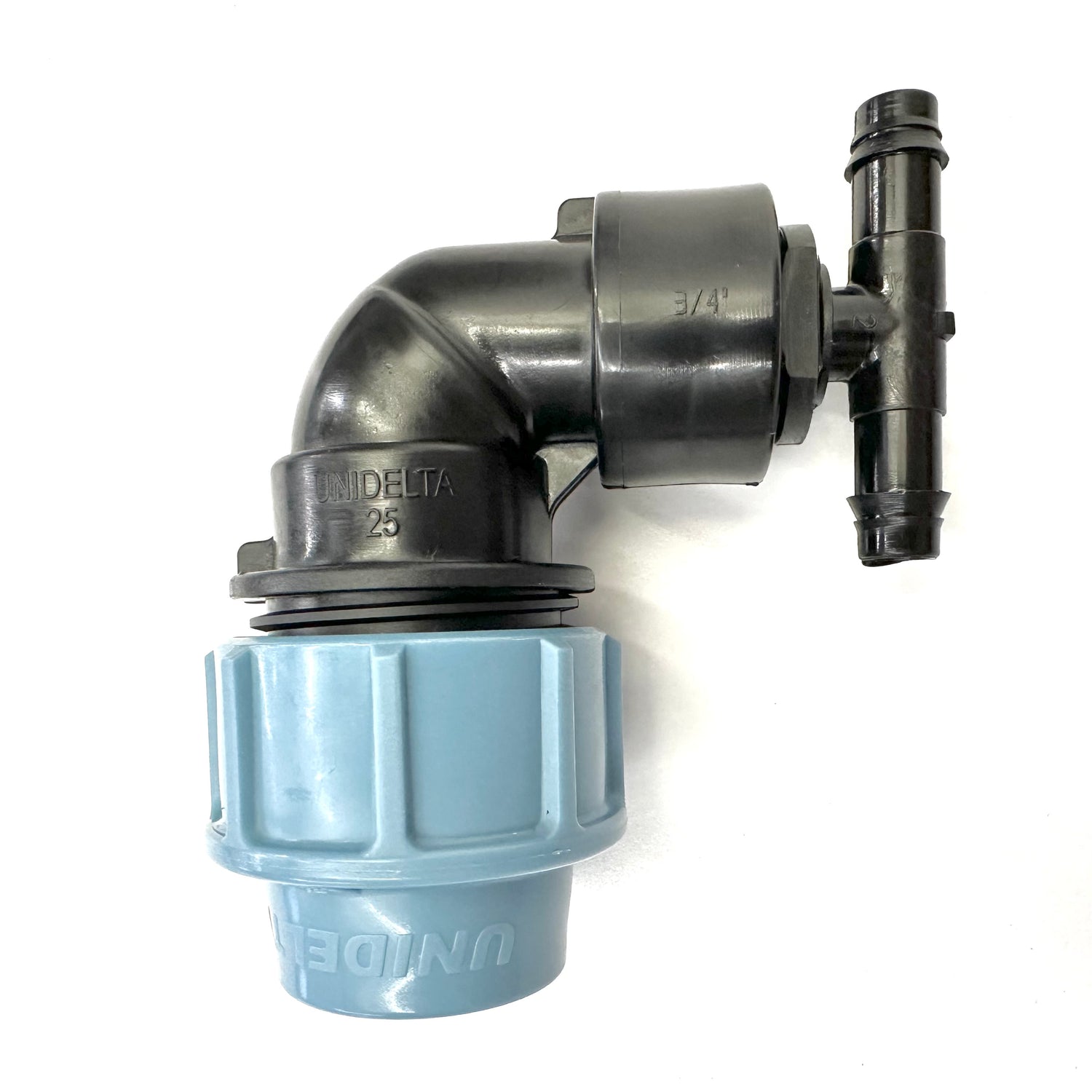

25mm Compression Elbow to LeakyPipe® connector.
(1 or 2 output options)
Use these fittings where the water is supplied to the garden in 25mm blue MDPE 'mains' pipe. The compression fitting is elbowed so that outputs are at 90degrees, very useful when the blue pipe is vertical as a 'riser' pipe. The output end is a barbed fitting which simply pushes onto the LeakyPipe.
The following outputs are available:
12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.
25mm Compression Tee to LeakyPipe connector.
(1 or 2 LeakyPipe output options)
Connect 25mm blue 'mains' pipe to 1 or 2 outputs of LeakyPipe.
Use these fittings where the water is supplied to the garden in 25mm blue MDPE 'mains' pipe. The compression fitting is elbowed so that outputs are at 90degrees, very useful when the blue pipe is vertical as a 'riser' pipe. The output end is a barbed fitting which simply pushes onto the LeakyPipe.
The following outputs are available:
12 - fits LeakyPipe as single or double output
16 - fits 16mm polytube as single or double output
20 - fits 20mm polytube as single or double output
Sold as a single unit, pre-assembled with PTFE tape. The fitting can be rotated once assembled without breaking the seal.
Pro-quality, 16mm compression to 3/4" female threaded adaptor.
There is no more secure way of quickly attaching 16mm supply pipe to a male thread (like the one you'll find on the output of a watering timer), than with this fitting. 16mm compressions will also make a tight fit onto most Garden Hosepipes too.
No fancy tools needed to fit this adaptor! Just a sharp cutter.
The fitting comprises three main parts.
A black "body”, housing an internal, rubber "O” ring
A blue threaded collar and a White plastic, toothed split ring.
To make "compression” connection to a pipe, firstly feed the blue collar onto the pipe. Then push the white split collar onto the pipe, just enough for the pipe to project about 25mm from the white collar. Now offer the end of the pipe to the fitting body. Push the pipe into the body and you’ll feel it stop against the internal "O” ring. With a little more push & a wiggle, the pipe will slip passed the "O” ring for a further 25mm. This will leave the white collar, settled very close to the black body.
All you need to do after this is simply do-up the blue collar to hold the four things together! It doesn’t need to be tight and the brilliant thing is, you can disassemble it very easily too. They won’t blow apart and the seal is successful by way of the "O” ring sealing on the outside of the pipe wall. Clever, isn’t it?
Just wrap PTFE "White" tape clockwise around the Male "Mating" thread, then wind the male and female threads together, to make that connection. Sometimes you can achieve a compression seal between these two by inserting one or two rubber, flat washers into the female part, before doing-up the Male part.
