Pressure Reducing Valves and Filters
Adjustable Pressure Regulator
An adjustable pressure reducing valve.
An Adjustable Pressure Regulator is a device that will adjust itself to allow a suitable downstream pressure in your pipework/Leaky Pipe. It will do this automatically as the input pressure may vary. It has a 3/4" female input and a 3/4" male output.
Adjust the downstream pressure between 0.7-2.3Bar with a Flat Screwdriver.

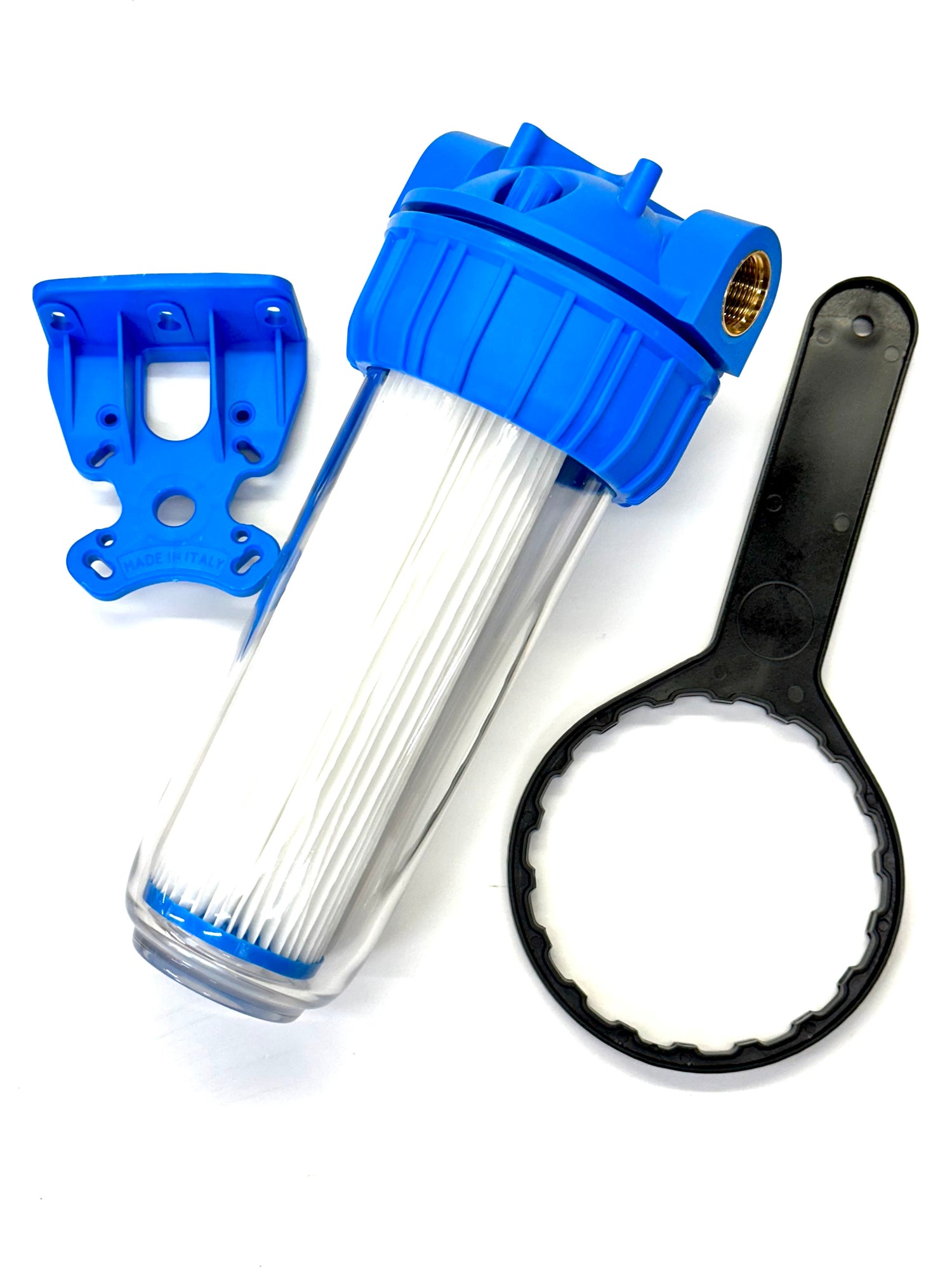

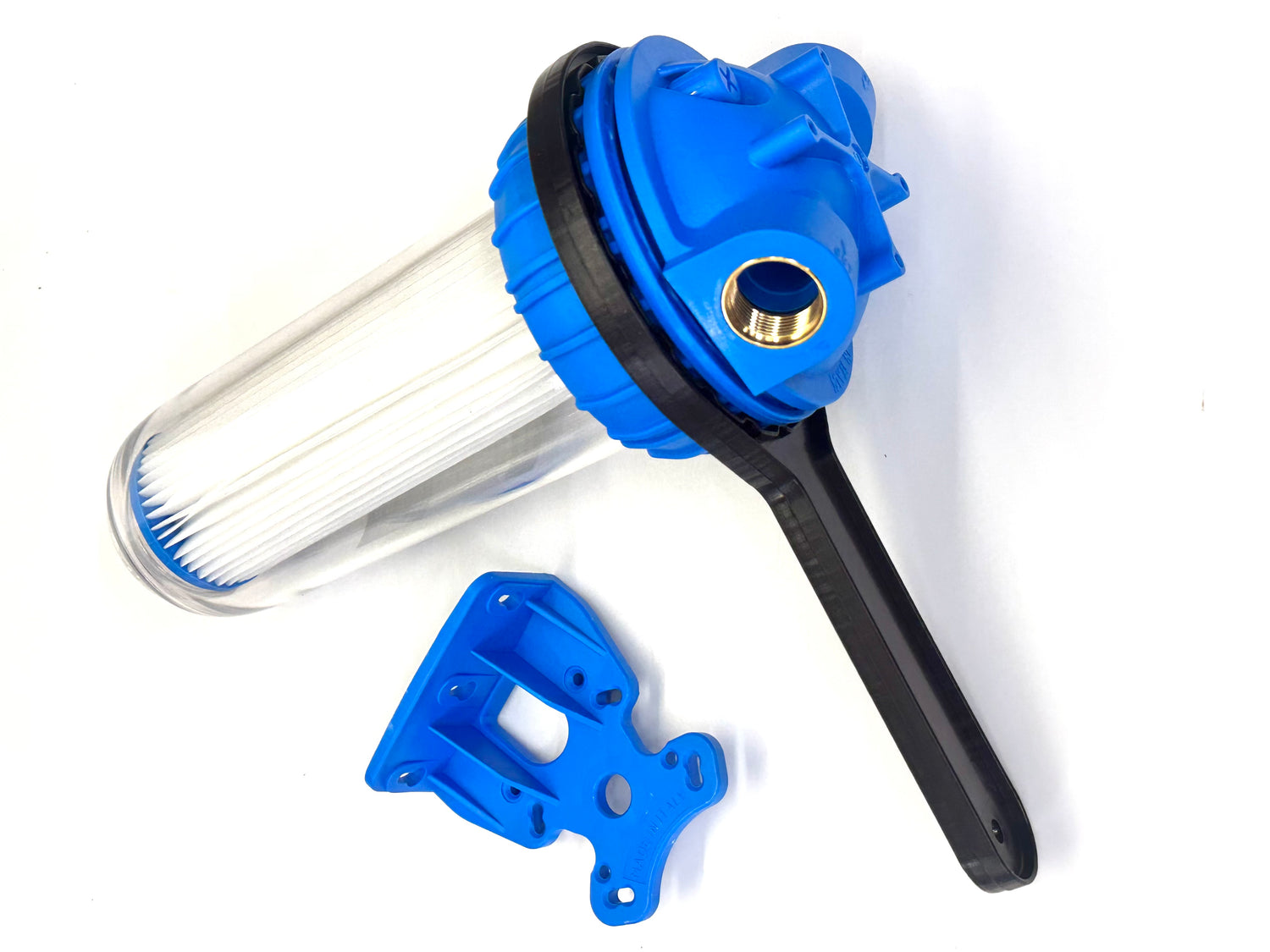

Filter Housing - 10inch clear body
Cartridge, wall mount and bowl spanner included.
Filter housing body with cartridge, wall mount and bowl spanner.
This filter housing can be connected into your water supply if the water source is not clean e.g. from bore hole or storage tank. A filter will prevent any dirt particles entering the LeakyPipe which could eventually lead to a blockage. It is not necessary for normal household garden taps on mains connection.
This filter contains a 10" pleated cartridge thus ensuring the best protection. It catches particulate down to 22micron.
It has brass lined 3/4" female BSP entry / exit ports.
The cartridge can be easily removed for cleaning.
Make sure it stays free of frost, so drain it out for overwintering.
The wall mount does not contain fixings as you will need to select these to be suitable for brick / wood etc.
Filter cartridge for 10inch filter bodies
Pleated 10" filter cartridge.
A filter cartridge to fit 10" filter housing. This pleated cartridge is the best quality available and catches particulate above 22micron.
The cartridge can be easily removed for cleaning or replacement if the dirt becomes too embedded!
Pleated filter cartridge for 10"filter housings. Can be cleaned and reused by washing under running water.
Filter and Pressure Reducing Valve Set.
(Filter cartridge and brass connectors included)
A pre-assembled filter and pressure regulator kit with options of input / output fittings.
This kit is ideal if your water source is unclean e.g. borehole and the pressure either too high or erratic. The unit is preassembled and you just need to connect it into your system, using either brass 'snap' fittings, 16mm or 20mm compression fittings, depending on the non-porous supply pipe you are using. Water goes through filter first, then the pressure reducing valve.
Includes a 10" long pleated filter which can easily be removed for cleaning or replacement. A commercial grade filter which filters down to 22micron.
Make sure it stays free of frost, so drain it out for overwintering.
Includes bracket to mount the unit on a wall or fence (fixings not provided) and spanner to tighten the body of the filter onto its top.

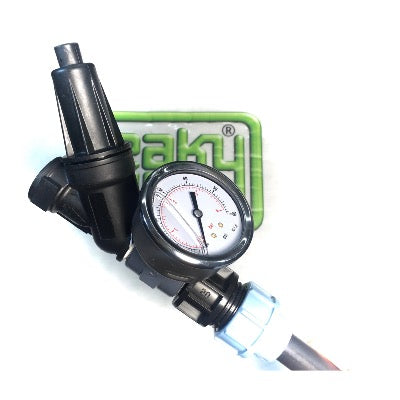

Adjustable Pressure Regulator with Gauge; 20mm Compression Output Fitting.
3/4" BSP input port - 20mm compression output fitting to 20mm polytube, (supply) pipe.
This is an adjustable pressure regulator with a working range between 0.7 - 2.2bar. Pressure gauge fitted is 0-4bar and is glycerine-filled. This unit also has a 20mm compression output fitting to allow you to attach it to 20mm LDPE Black polytube and 20mm MDPE Blue Polypipe. There is an option for 16mm compression. Please ask us if you need this.
