Filter and Pressure Reducing Valve Set.

(Filter cartridge and brass connectors included)

A pre-assembled filter and pressure regulator kit with options of input / output fittings.

This kit is ideal if your water source is unclean e.g. borehole and the pressure either too high or erratic.  The unit is preassembled and you just need to connect it into your system, using either brass 'snap' fittings, 16mm or 20mm compression fittings, depending on the non-porous supply pipe you are using. Water goes through filter first, then the pressure reducing valve.

Includes a 10" long pleated filter which can easily be removed for cleaning or replacement. A commercial grade filter which filters down to 22micron.

Make sure it stays free of frost, so drain it out for overwintering.

Includes bracket to mount the unit on a wall or fence (fixings not provided) and spanner to tighten the body of the filter onto its top.

Filter Housing - 10inch clear body

Cartridge, wall mount and bowl spanner included.

Filter housing body with cartridge, wall mount and bowl spanner.

This filter housing can be connected into your water supply if the water source is not clean e.g. from bore hole or storage tank. A filter will prevent any dirt particles entering the LeakyPipe which could eventually lead to a blockage. It is not necessary for normal household garden taps on mains connection.

This filter contains a 10" pleated cartridge thus ensuring the best protection.  It catches particulate down to 22micron.

It has brass lined 3/4" female BSP entry / exit ports.

The cartridge can be easily removed for cleaning.

Make sure it stays free of frost, so drain it out for overwintering.

The wall mount does not contain fixings as you will need to select these to be suitable for brick / wood etc.

Filter cartridge for 10inch filter bodies

Pleated 10" filter cartridge.

A filter cartridge to fit 10" filter housing. This pleated cartridge is the best quality available and catches particulate above 22micron.

The cartridge can be easily removed for cleaning or replacement if the dirt becomes too embedded!

Pleated filter cartridge for 10"filter housings.  Can be cleaned and reused by washing under running water.

Ground stake for 16mm or 20mm supply polypipe

These ground stakes will work if pushed into firm soil. They can be used to hold supply pipe in place, often until further soil is put on top as another means of spotting down the supply pipe.

They are generally not needed for the LeakyPipe as this will lie flat if the 'wind' is taken out - see video here.   They are not an essential, but can be handy.

140mm long.  One size, fits pipe up to 20mm diameter. Sold individually.

Adjustable Pressure Regulator

An adjustable pressure reducing valve.

An Adjustable Pressure Regulator is a device that will adjust itself to allow a suitable downstream pressure in your pipework/Leaky Pipe. It will do this automatically as the input pressure may vary.      It has a 3/4" female input and a 3/4" male output.

Adjust the downstream pressure between 0.7-2.3Bar with a Flat Screwdriver.

Adjustable Pressure Regulator with Gauge; 20mm Compression Output Fitting.

3/4" BSP input port - 20mm compression output fitting to 20mm polytube, (supply) pipe.

This is an adjustable pressure regulator with a working range between 0.7 - 2.2bar.  Pressure gauge fitted is 0-4bar and is glycerine-filled.   This unit also has a 20mm compression output fitting to allow you to attach it to 20mm LDPE Black polytube and 20mm MDPE Blue Polypipe.    There is an option for 16mm compression.  Please ask us if you need this.

Ingenious, time saving, Travelling Lawn Sprinkler by Nelson

Self-propelled, Travelling Sprinkler System for large gardens and areas of grass.

Made by Nelson. Improved by us.

This is a great tool made in the USA by Nelson. It's useful to those who have a large area of lawn & desire an easy and cheap way of watering it without too much effort. Look no further! It's a garden sprinkler that moves itself.

These submergible valve boxes are designed to be dug into the ground and have green twist down lids. They will protect and conceal underground pipes, valves and control equipment.

PLEASE do NOT place battery timers within these valve boxes as they can get damp.

They are available in following sizes:

• Small, round - 20cm diameter, 23cm deep
• Large, round - 33cm diameter, 25cm deep

Submergible valve boxes to conceal control equipment. (Not recommended for battery-powered, timers for taps).

Available in Standard and Jumbo size.

Larger sized submergible boxes, large enough to conceal filters and control assemblies.

These valve boxes are designed to be dug into the ground and have green bolt-down lids. They will protect and conceal underground control equipment. PLEASE do NOT place battery timers within these valve boxes as they can get damp & fail.

Available in the following sizes:

• Standard - 25cm wide, 46cm long, 30cm deep
• Jumbo - 46cm wide, 63cm long, 30cm deep

A standard-sized rectangular valve box with green bolt-down lid.

Size: 25cm wide, 46cm long, 30cm deep.

A Screw-on pipe clip for wall mounting 16mm polypipe

What can we add? It’s self-explanatory.  This is a great clip for retaining metric polypipes on brick walls or timber fences.  Just use a suitable screws and plugs as necessary.

Pipe clips can be clipped together if you wish to run several parallel pipes.

A simple screw-on pipe clip to neatly hold 20mm polytube to walls, fences etc - just select a suitable screw fixing.

They can be linked together if several pipes need securing.  Sold individually.

Dripper Stake (from our hanging basket kit)

Hanging Basket and pot watering kit STAKES sold individually.   As simple as that.

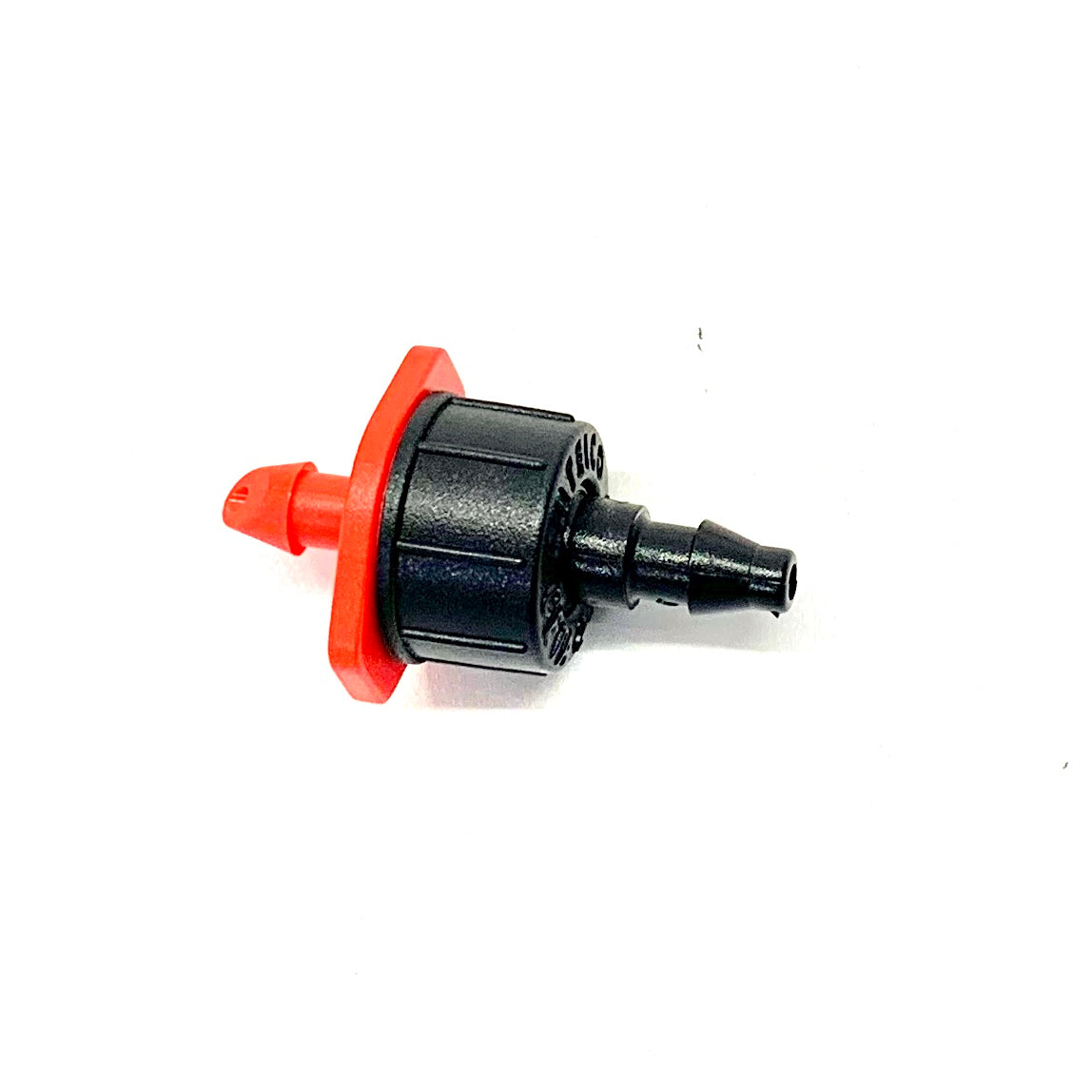

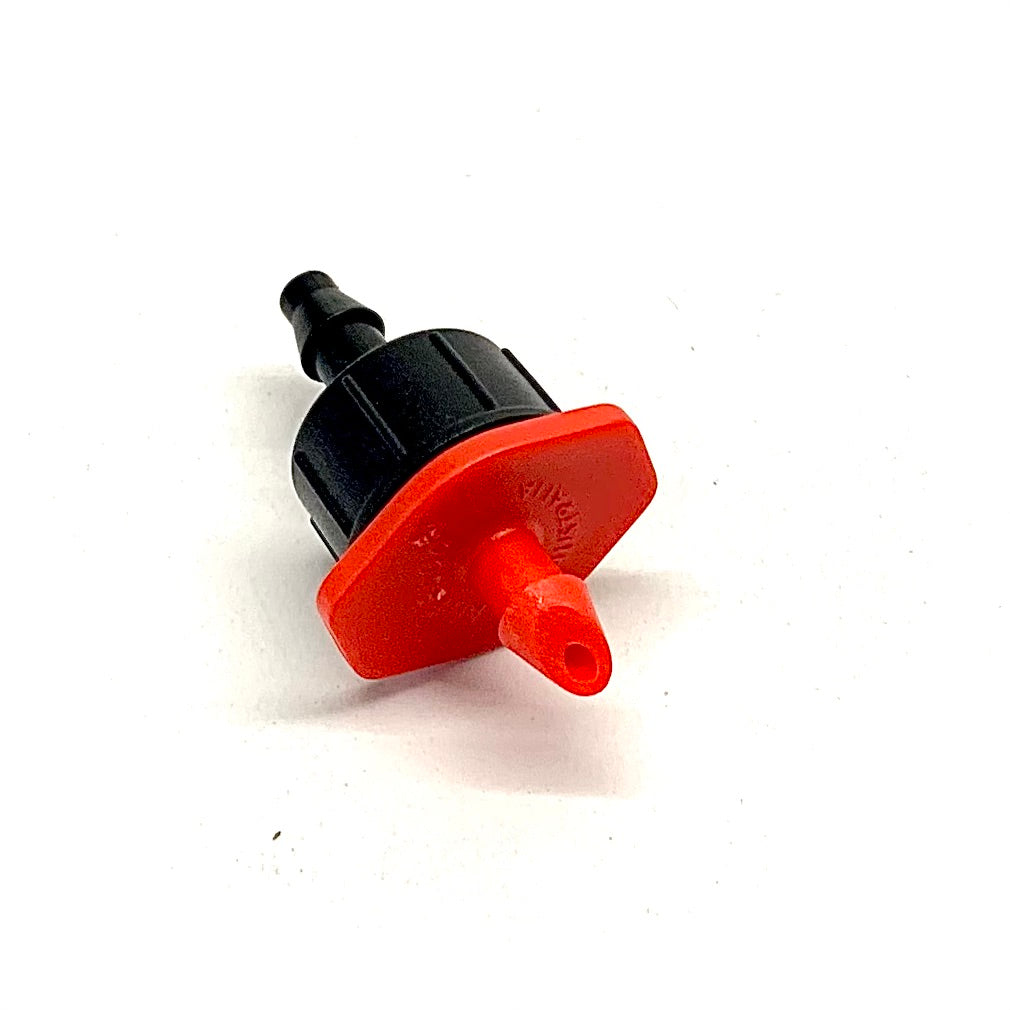

Pressure Compensated Dripper

These are found in our hanging basket and pot watering kit, but you are able to buy additional single drippers here.

Sold individually.
